Name: U8794
Brand: Hioki
SKU: U8794
Price: 3886.71 GBP
Availability: InStock
Rating: 5 (1 reviews)

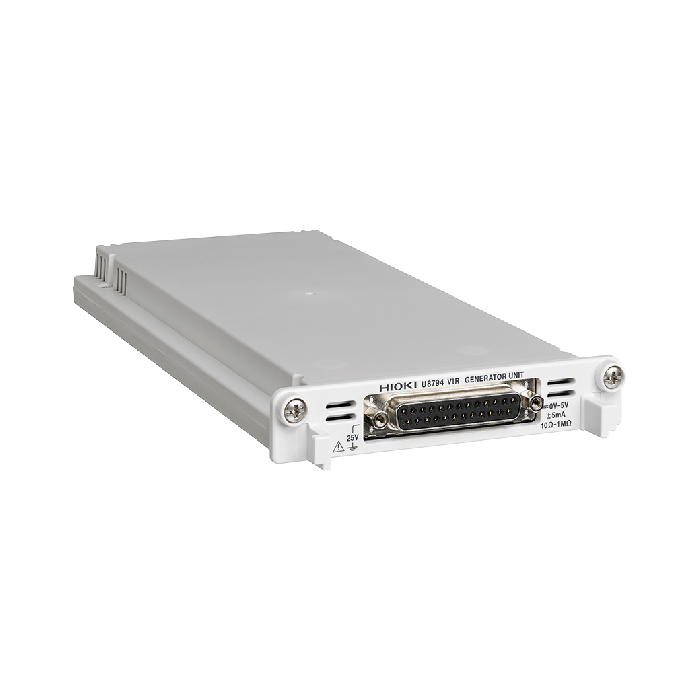

U8794

Hioki

As an inspection device of the ECU, it is ideal for generating simulation signals of various sensors, inspection of electronic parts, equipment maintenance
DC voltage, DC current, and resistance simulation output
In resistance generation, the voltage to be connected is measured, the output current is calculated from the set resistance value, and simulated output
Used in combination with Memory HiCorder series MR8740T (not available in other models)
Isolation between each output channel and between channel and chassis

Note: This module must be used with the Memory HiCorder. Output cords are not included.

More Information
Attribute	Value
Lead Time	Usually available in 5-7 weeks
Output Voltage Range	DC voltage: -0.100 0 V to +5.300 0 V (setting resolution: 0.1 mV) DC current: 5 mA range: -5.000 0 mA to +5.000 0 mA, Setting resolution: 0.1 μA 1 mA range: -1.000 00 mA to +1.000 00 mA, Setting resolution: 0.01 μA 250 μA range: -250. 00 μA to +250.00 μA, Setting resolution: 0.01 μA 50 μA range: -50. 000 μA to +50. 000 μA, Setting resolution: 0.001 μA Resistance: 10 Ω to 1 MΩ, Setting resolution: 6 digits
Dimensions and Weight	106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 280 g (9.9 oz)
Accuracy	DC voltage: 5 V range, ±0.035% of setting ± 800 μV DC current: 5 mA range: ±0.050% of setting ± 4.0 μA 1 mA range: ±0.050% of setting ± 800 nA 250 μA range: ±0.050% of setting ± 200 nA 50 μA range: ±0.050% of setting ± 40 nA
Output Terminal	Number of channels: 8 (each channel is isolated), Connector: 25-pin D-sub Max. rated voltage to earth: 25 V
Other	Self diagnostic, switch output terminals, estimate target connection, cancel offset
Output Items	DC voltage, DC current, resistance (simulated output)
