LKV-4500
LKV-4500
ETS-Lindgren
Power Filter, 0-277/480 VAC, 4 x 500 AMP. Engineered for high-power installations that demand exceptional attenuation without degrading facility power quality.
Power Filtering for Mission-Critical Facilities

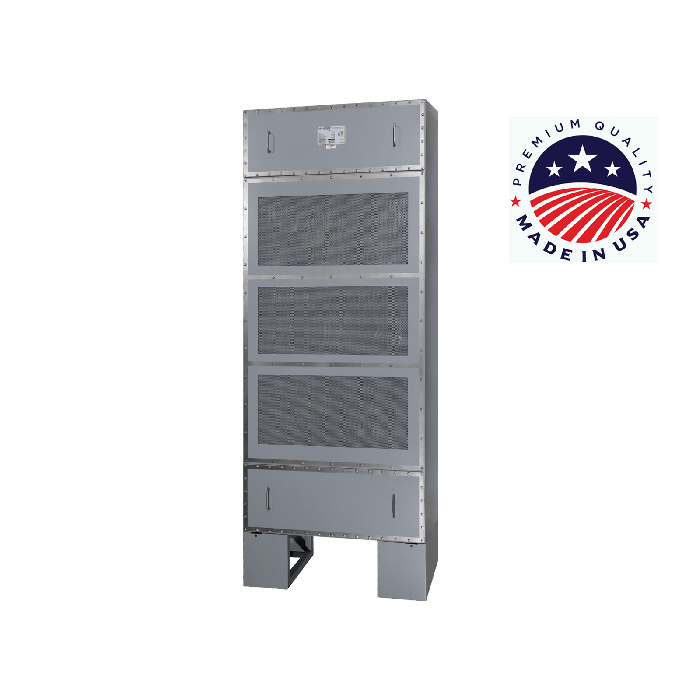

The LKV-4500 Power Filter is a high-capacity, low KVAR power filtering solution designed for TEMPEST, secure facility, and mission-critical infrastructure applications. Engineered for demanding electrical environments, it delivers exceptional electromagnetic attenuation while helping maintain power quality and electrical system stability.
Providing 100 dB insertion loss from 14 kHz to 40 GHz and supports 0-277/480 VAC systems with a rated current of 4 x 500 amps, its low KVAR design helps minimize reactive current generation, reducing potential impacts on facility electrical systems.
Designed for government, defense, intelligence, secure communications, and critical infrastructure environments, the LKV-4500 helps protect facilities from conducted electromagnetic interference while supporting operational continuity. Manufactured to the latest revision of UL 1283 and designed in accordance with MIL-F-15733, MIL-STD-220, and IEC 60939-1 requirements, it is built to support demanding security and performance requirements.
Key Features:
- Manufactured to the Most Current Version of UL-1283
- LKV Filters Meet the Following Standards in Accordance with Safety and Manufacturing Standards:
- MIL-F-15733
- MIL-STD-220C
- IEC 60939-1
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 233 cm × 99 cm × 45 cm (92 in x 39 in x 18 in) |
| Weight | 294.8 kg (650 lb) |
| Current Rating | 4 x 500 AMP (3 phase & neutral) |
| Frequency Range | 0 to 60 Hz |
| Insertion Loss | 100 dB from 14 kHz to 40 GHz |
| Power Voltage | 0-277/480 VAC |
| Industries | Government, Information Technology/Data Centers |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
