1.077.5025.50
1.077.5025.50
Hummel

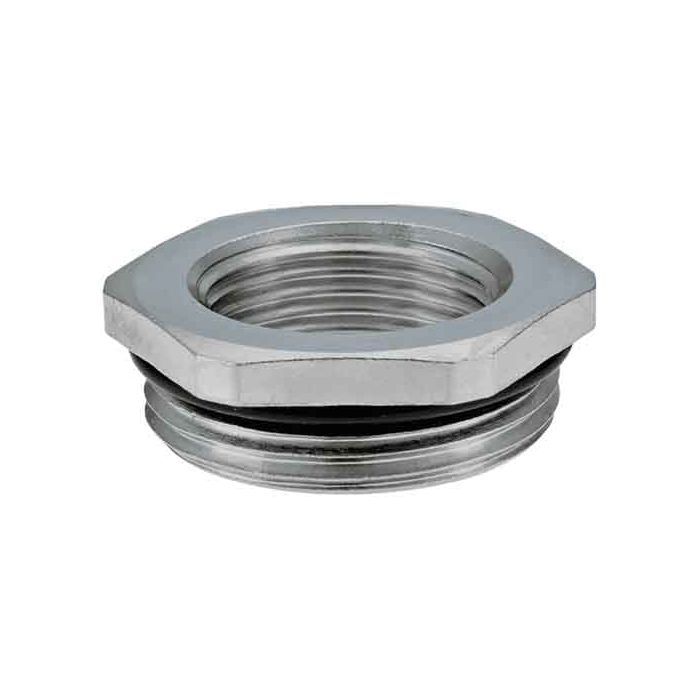

Reduction made of brass
Reduction made of brass from Hummel. Metric. -40°C to +100°C
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1077502550 |
| Manufacturer | Hummel |
| Weight (kg) | 0.1952 |
| Further information | O-ring made of FKM / VMQ on request |
| Customs tariff number | 74122000 |
| EAN code | 4033878401460 |
| ETIM 7 | EC000938 |
| Packaging Unit | 10 |
| Height (mm) | 13 |
| Certificates | DNV-GL |
| External thread (AG) | M50 x 1.5 |
| Material seals / O-rings | NBR |
| Material | Nickel-plated brass |
| Thread length (mm) | 9 |
| Internal thread (IG) | M25 x 1.5 |
| Tightening torque [Nm] | 24 |
| Wrench size 1 (SW1) [mm] | 55 |
| Wrench size (SW) [mm] | 55 |
| Temperature Range | -40°C to +100°C |
| RoHS | RoHS |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
